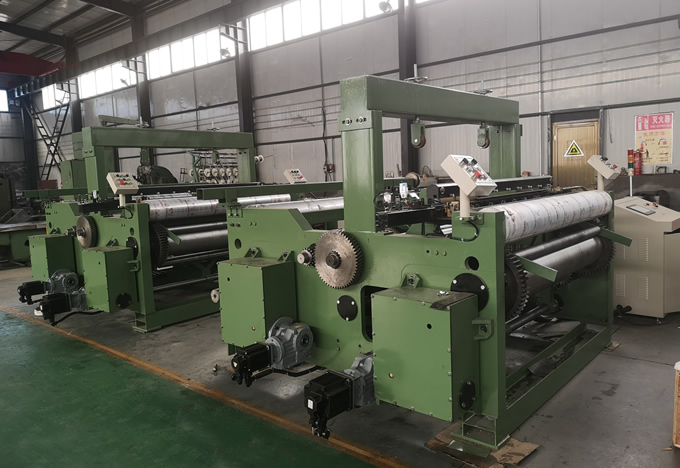

1. wire mesh knitting machineAPM-SG-1300/16001JD CNC Rapier and Full PLC Designed Wire Weaving Looms
Features
1. Adaptability to metal wires: adapt to various metal wires.
2. One beat weaving with the stronger power
3. The machine adopts the technique of shuttle less and linear weft insertion. Automatic warp let-off and cloth take-up. Shedders are small and the surface of woven screens are smooth. There is not any bright spot, bright trace and other effects on fine screens. The machine can make high grade metal wire screens.
4. Whether warp or weft wire broken, wrong action. The machine will stop with the light warning
5. Heavy body ,good stability, low noise and energy consumption, high efficiency. Rational design, simple construction, easy to operation and maintain.
6. Warping system behind on the weaving machine.
Specification
| Item | Normal Type | Full PLC construction | ||
| Mesh range | Square Aperture 8-80mesh Holland Weave till 300mesh | Square Aperture 0-200mesh Holland Weave till 350mesh | ||
| Wire diameter range | <=0.80 | <=0.80 | ||
| Weaving width | 1300mm 1600mm 2000mm 2500mm | 1300mm 1600mm 2000mm 2500mm | ||
| Main Motor | 4.0-5.5KW | 4.0-5.5KW | ||
| Servo Motor | Rapier :2.3KW | Let off :2.5KW Take-up: 3.0KW Rapier: 2.3KW | ||
| Weaving Speed | Below 60times/min | Below 60times/min | ||
| DIY design need to afford the cost accordingly | ||||
| Color Choice | Yes | Yes | ||
| Remote Control | Yes | Yes | ||
| Safety Light Curtains | Yes | Yes | ||
| Endless Cloth take-up | Yes | Yes | ||
| Safety Chain and Air Expansion Shaft | Yes | Yes | ||
| Safety Design | ||||
| Rapier movement limit protection | Yes | Yes | ||
| Electro rapier cam protection | No | Yes | ||
| Let-off movement degree protection | No | Yes | ||
| Take-up movement degree protection | No | Yes | ||
Weaving type
