1. wire mesh knitting machine2Our hydraulic crimped wire machine is powered by high power rate electric machine and hydraulically controlled in knitting, changing headless, matting. It has the characteristics of stable performance, low noise, high knitting efficiency and sooth knitting mesh. This machine is mainly used for knitting big diameter mine sieving mesh with 4.0mm-12mm diameter and 2.0m width. Its products are mainly used in big mines, and coal fields to sieve and filter.
Main parameter of Hydraulic crimping wire mesh machine:
type | Wire dia | Weaving | weight | Size | Motor details | Wire feed speed in MM | ||||
Driving power | Power | |||||||||
hydraulic crimped wire mesh machine | 4.0-12 | 2.0 | 2 tons | 3.5*3*1.8 | 5.5 | 380 | 15-20 | |||
|
| |||||||||
Straightening and cutting machine | 1.4-12 |
| 800kg | 1.6*1*1.2 | 5.5*1 set | 380v/ | 28 | |||
| Flow rate | Hydraucylinder(mm） | Weight | size | ||||||
Hydraulic press | 40 pump | 100mm*1 | 400 | 700*500*800 | ||||||
auxiliary machine | Picture |

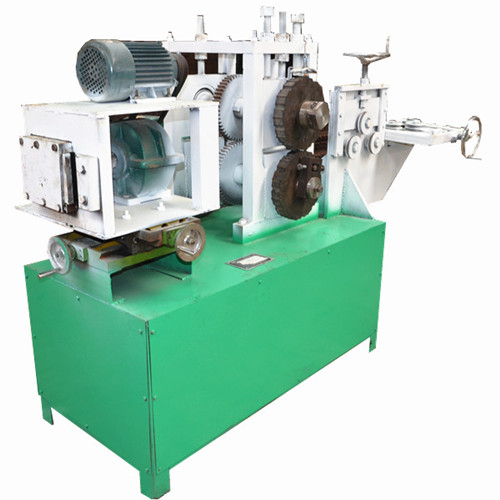

Straightening and cutting machine |
|
Crimp gear |
|
Mesh Spool |
|
Warp Wire Spool |
|
Weft Wire Spool |
|
